COYOUCO 300A Bus Bar Heavy Duty Module Design Power Distribution Block 48V DC Busbar Box with 4 Terminal Studs for Battery Marine Automotive RV Car Truck,Red m8

EXCELLENT MATERIALThe base and shell are made of glass fiber reinforced nylon to ensure mechanical strength and durability.BLANK DESIGNThe blank write-on space on the top allows easy labeling for each branch，so that you don’t forget where the wiring comes from.ANTI-SLIP DESIGNThe non-slip sponge is used at the bottom to increase the friction and increase the stability of the busbar.UNIQUE DESIGNThe modular box design is convenient for wiring configuration. The box is detachable for wiring in four directions without obstacles, and reasonably accommodates the wires inside the vehicle and ship. It plays a role of storing a negative wire harness in automobiles, ships and yachts, and the negative wires are gathered together to make the box storage more beautiful.PACKAGE:1 x Heavy-Duty Busbar BoNOTE:Product dimensions are measured manually, and there may be errors.SPRCIFICATION:Base & Cover Material: Glass Fiber reinforced NylonBus Material: Brass, Nickel platedWorking voltage: DC 12V - 48VMax Operating Voltage: DC 48VMax Continuous Currents: 300ATerminal Stud Size: 4x M8 (5/16")/M10（3 /8”） optionalDimensions (L x W x H): 138 x 69 x 44.5mm, (5.47 x 2.75 x 1.8 inch)Weight: 12.8 ounce

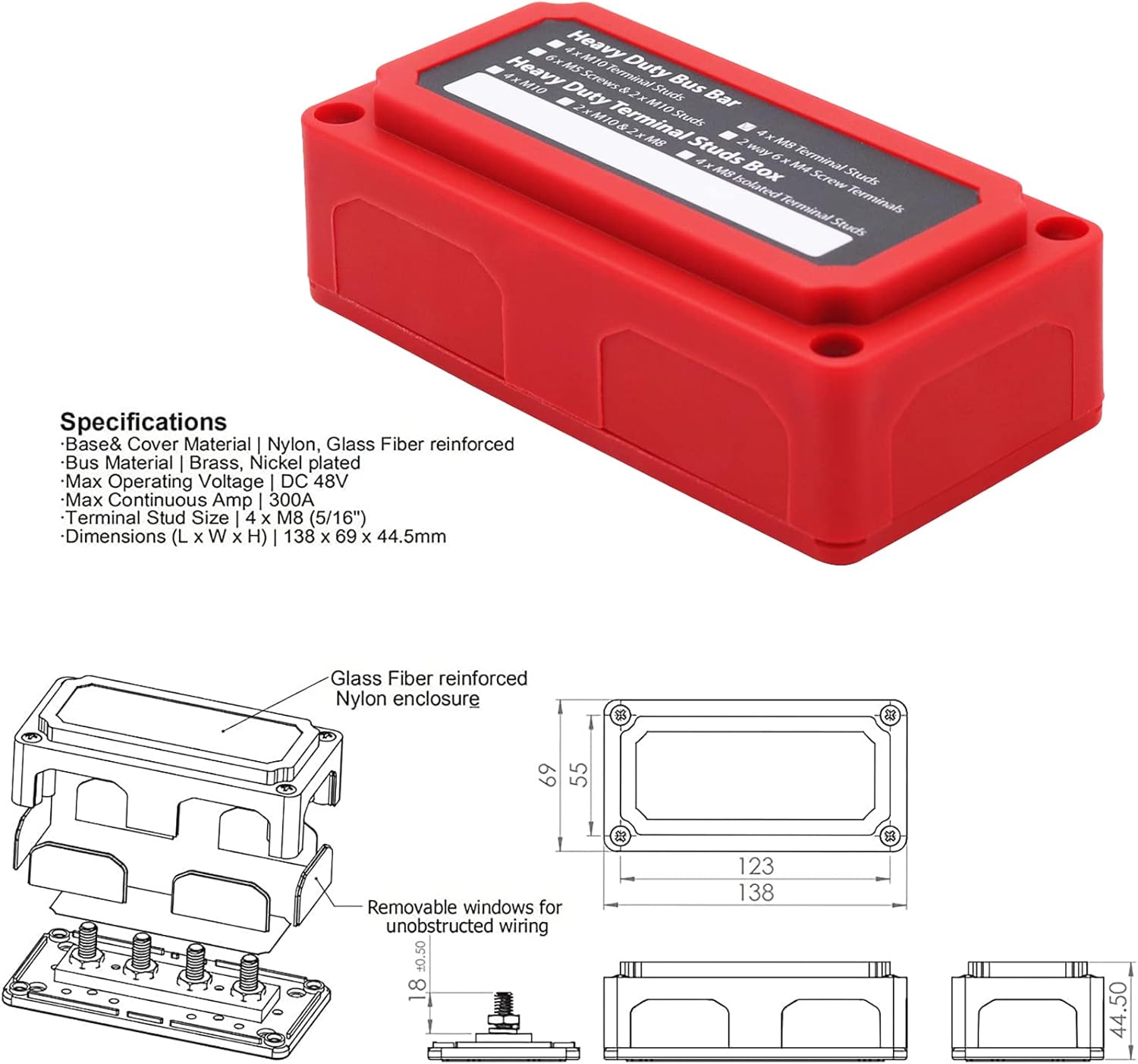

• →[Dimensions] The bus bar is measured (L x W x H): 138 x 69 x 44.5mm (5.433"x2.72"x1.75"). Stud size: M8 (5/16") or M10(3/8").

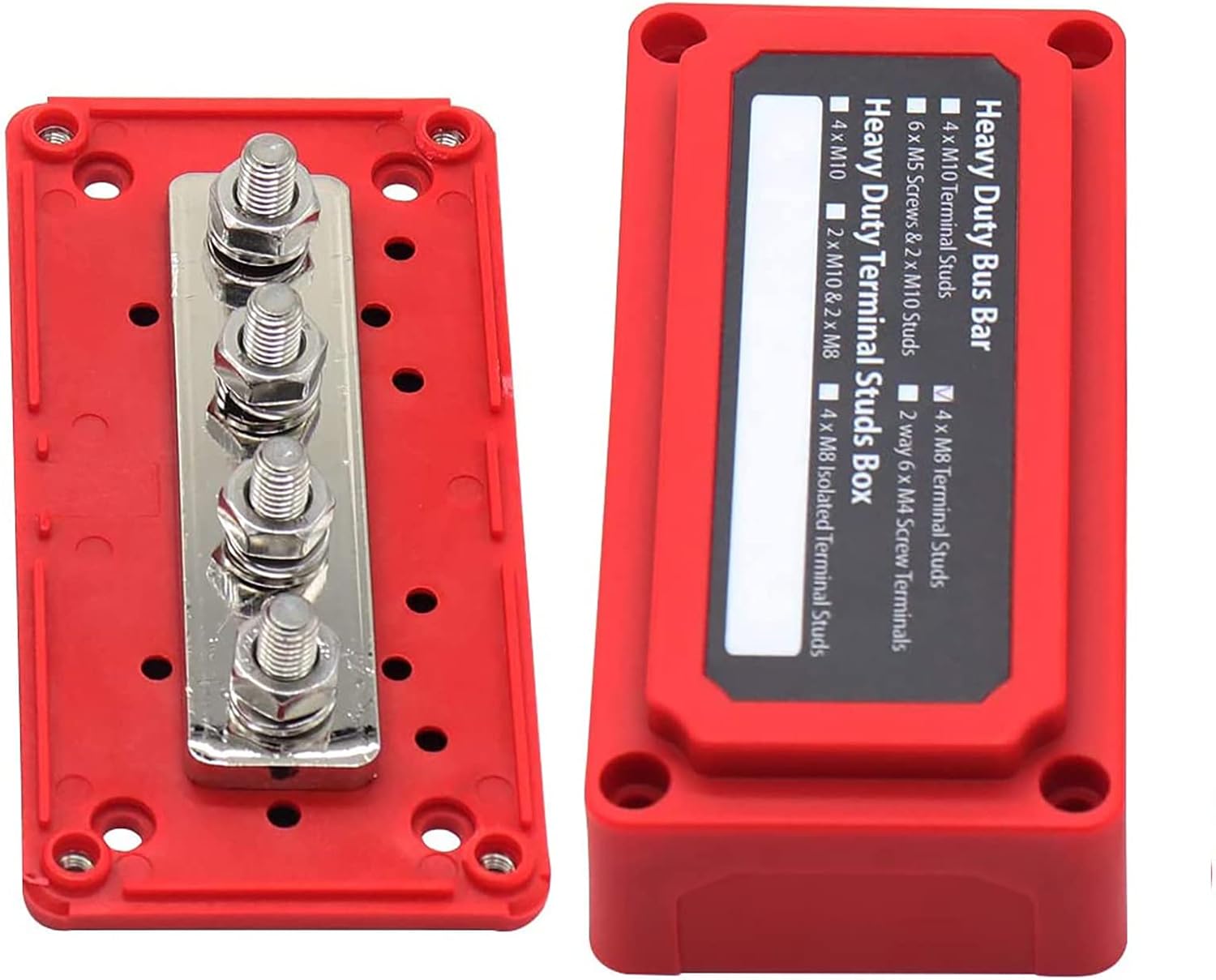

• →[High Quality] Bus Material: The battery distribution block is made of brass and nickel plated, which has good electric conduct performance and sturdy rust-resistant. The base is made of nylon - glass fiber reinforced to protect your safety, ensures great mechanical strength and durability.
• →[Waterproof & Dustproof] The power distribution block With four removable side plates, a insulated rear cover, that's designed to withstand rain and dust,resist the air and seawater erosion.
• →[Unique Design] The battery terminals base has non-slip sponge, increased Stability. And the blank write-on space on the top allows easy labeling for each branch.
• →[Easy to Mount] RV terminal blocks surface screw fixed installation, four mounting holes make this terminal block easier to be mounted in any orientation.Removable windows for unobstructed wiring.
